Demountable Containers

Folding container prefabricated house

Folding container prefabricated house

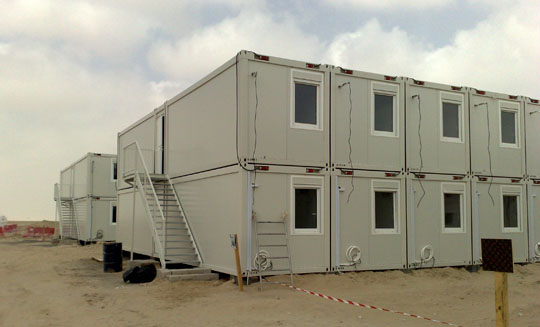

Standard base camp accommodation / office structures ship flat but assemble quickly into 2.40mt x 6.00mt modular containers with nicely finished interiors. Containers can be joined together to make large, open plan structures or can stand-alone as living accommodations or office shelters.
Demountable flatpack containers are designed for stacking in their disassembled and assembled forms. Minimal lifting equipment required for assembly. Can be erected with minimal foundation (level blocks, shims). Disassembled containers allow for low ocean / road transport costs.

  • Standard military / commercial base camps
  • Temporary offices / accommodations
  • Ship assembled or knocked down
  • Temporary / mobile camps for construction and military
  • Easy solutions with assembly
  • All Demountable -flatpack containers have highly insulated polyurathane sandwich panels
  • The electrical system can also be installed according to any projects



Introduction:

CLIMA Container Prefabricated House featured with high, they can be widely usded as: Construction site homes,Temporary Offices,Temporary Dormitory, Camp Work,Additional Floor and so on.
1.The container houses can be transportated as a whole easliy for many times.

2 .It is easy to ship, its wall and roof panel can be choosen from sandwich panel with EPS PU or Rock Wool,and its inner board is wooden board or plasterborad. After folding for shippment, the packing size is very small and 6 units of container houses can be loaded into a 40 feet container.

3. Installation of the Container Prefabricated House is time-saving,the roof, floor and electricity system are prefabricated and we will send experienced engineers to there for guding the installation.

4.The foundation of container house is easy to make, only tight and flat ground is enough and no need to do the concrete foundation.

Container
Office living work site containers 300 cm X 700 cm X 20 cm
Technical properties of module steel system CLIMA office living containers
The products that are manufactured by our side are TSEK and ISO 9001- quality certified.
Technical data: snow load 80 kg/ m 2, external wall heat conducting coefficient k: 0.73 kcal/ m 2 hc, moving floor load is 200 kg/ m 2.
1-Walls: At the outer surfaces of the external walls, DKP trapezoid sheet metal in 35 mm pitch depth, as heat insulation expanded polystyrene foam( 10/12 kg/ m 3) in 40 mm thickness is being used at internal and external walls.
2. Roof coating: It is galvanized sheet metal of trapezoid cross section in 0.55 mm thickness and 27 mm pitch depth, the rain waters are evacuated by corner columns.
3-Ceiling coating: Fiber glass of 80 mm thickness for heat insulation and for ceiling coating PVC panels is being used.
4-Doors: the door chassis are made of steel and external doors are insulated metal doors, internal doors are MDF contra press door. The dimensions of external doors are 800 X 1950 mm.
5-Windows: The window joineries are PVC based; single glass in 4 mm thickness is installed. The window dimensions are 90/ 110 cm and they may vary upon request. In the units for ventilation, aluminum shutters or fans are being used.
6-Floor: Marley ( folio coated on top of 300 x 300 X 1.6 mm) is being used as floor coating over the cemented chipboard plates in 16 mm thickness installed on horizontal profiles.
7-Sanitary installations: The installations are made plaster depth. Clean water piping are FIRAT brand. The tea furnace is chrome steel kitchen sink. Wash basins and lavatory bowls are DOGVIT brand.
8-Electrical installation: The electrical installation is hidden, laid in plaster depth. The cables are HES brand, for the fuses Siemens automates are used. For the sockets cables of 2 X 2.5, lighting 2 X 1.5 are used. The keys and sockets are VIKO brand. In each room, there is one key, one socket and one telephone socket. Split air conditioning installation will be made at the container.
9. Paint: At the external surfaces of the container, double layer industrial coating and double layer industrial paint is being applied.
10-Dimensions: The 1 type containers are in the dimension of 3.00 X 7.00 X 2.6 and the 2 nd type containers are 2.40 x 6.00 X 2.6.
11-Lifting system: The loading work is being made by connection of the steel cables with equal distance to the hidden eye bolts mounted on corners to the locks. As the WC, shower containers are manufactured from gelatinized sheet metal without insulation they may also be manufactured with insulation. The containers can be manufactured two or more layered upon request.
The reinforced concrete of the floor, heating and cooling installations and external building lines, accommodation between cities, lodging, transportation and transportation insurance belongs to customer.
The right of modifying of the technical specifications belongs to CLIMA prefabricated.
Why CLIMA container ?
In our country and in the world; when office living steel mono block construction is considered; excluding the work site buildings or emergency accommodation needs after the earth quake, mostly only the living containers with outer surface is made out of bent sheet metal insulated type steel construction elements and generally single or multi floored containers are considered.
CLIMA container is an ideal solution for places that do not have work site possibility (mountainous areas) and for continuously mobile places. When it is demanded to move very rapidly, it might be made with trailer. In cumulative orders and foreign shipments, it is shipped in demounted condition and the assembly may be made at site in 3 hours.
Multi purpose modular living container units are being manufactured for all your needs. The internal and external utilization areas of the easily mountable and transportable containers can be arranged with respect to demand. Practical, functional and multi purpose container living unit after earth quake, locker rooms, toilet (WC shower) is ready for your use as depot. It is possible to make multi floored container building by bringing many of the units together. With the living container models, residence purposed constructions can be formed in your vineyard, garden, sea side, resort. Upon request, prefabricated residence roofs can be applied on containers. The container constructions inclined to all kinds of utilization purpose are conspicuous with the property of economy and rapidity at the fist glance. The containers that can be considered as the inevitable unit of work sites; can be designed with respect to all kinds of needs from office to WC-shower, dining room, dormitory, and depot and living units. With their wide architectural alternatives the containers have the property of having a suitable decoration for the purpose, rapid assembly, utilization ease, minimum maintenance cost and assembly and disassembly properties. Besides this, with the planning called composite system planning; construction in every dimension and multi floored can be constituted other then the standard dimensions. With our CLIMA containers, you will reach the quality faster and economically. The container dimensions with and without standard insulation are 2.4 mX 3.0 m- 2.4 m X 6.0 m- 2.4 m X 7.0 m- 2.4 m X 8.0 m- 3.0 m X 6 m-3.0 mX 7.0 m-3.0 mX 8.0 m- 3.0 mX 12 m and production is made upon request. Other then our standard container models, the containers that can provide the application of all plans will be a solution for you. Our containers are low cost, easily transportable and mountable they are being manufactured with the property of assembly, handy, combined and multi floored modular system. Completion of all manufacture and assembly works, being capable of lifting and lowering with crane and not requiring any concrete floor for its installation are its advantages. After the work of the container is finished, you may ship the containers to your business site and depot with transportation chains.
Our esteemed customers what you have to do is to select the house among our models sections and to relay it to us after devising the house of your dreams from your mind.
Living is lived differently at CLIMA prefabricated residences. We hope you to use it in days of good health and in tranquility.
The specifications of CLIMA container toilet bath (WC Shower) container
Technical data: snow load 80 kg/ m 2, external wall heat conducting coefficient k: 0.73 Kcal / m 2 hc, moving floor load 200 kg/ m 2.
1. walls: : At the outer surfaces of the external walls DKP trapezoid sheet metal in 35 mm pitch depth, as heat insulation expanded polystyrene foam( 10/12 kg/ m 3) in 40 mm thickness is being used at internal and external walls.
2. Roof coating. It is galvanized sheet metal of trapezoid cross section in 0.55 mm thickness and 27 mm pitch depth, the rain waters are evacuated by corner columns.
3-Ceiling coating: Fiber glass of 80 mm thickness for heat insulation and for ceiling coating PVC panels is being used.
4-Doors: the door chassis are made of steel and external doors are insulated metal doors, internal doors MDF contra press door. The dimensions of external doors are 800 X 1950 mm.
5-Windows: The window joineries are PVC based; single glass in 4 mm thickness is installed. The window dimensions are 30/ 40 cm and they may vary upon request. In the units for ventilation, aluminum shutters or fans are being used.
6-sanitary installations: The water installations of the toilet containers are in plaster depth. The clean water piping and Pimas connection and waste water connections are FIRAT brand.
7-As ceramic, Turkish style floor stone and closet toilet stones and washbasin ceramics are container mountable ceramics of DOGVIT brand are mounted.
8-Washbasin facets, purity facets can be mounted to sanitary installation and the purity facets are ECESAN brand.
9-Flush tanks are suspended or connected to the rear of closet. The reservoirs are mounted with crimped hoses or flat pipes. The reservoirs are TEMA branded.
10- The tiles are Kalebodur branded. Special Canakkale ceramic branded ceramic has been installed as a wet surface of the toilet containers.
11- For shower container, excluding the other properties water plumbing has been installed with marble cast shower basin siphon of 70 X 70, shower basin, ECE branded cold and hot phoned shower armature, cold and hot sanitary installation, soap holder and hot water installation has been installed for water heater in the shower cabins.
12- The floor of the container has been manufactured from profile material of 2 mm thickness. Profile chassis has been painted with anticorrosive paint. For the floor of the toilet, cabin is raised 20 cm from ground for S and over the fiber cement board of 16 mm thickness, white colored ceramic is bonded in dimension of 20 X 20 and filled with jointing mortar.
13- Other vitreous materials like tissue paper holder, faucet mirror, hanger, plastic framed mirror set; ground screen, wash basin siphon, closet cover and other connection parts have been attached to toilet WC units.
14- The polyester water tank can be placed over the toilet containers up to 1.000 lt upon request. Additional waste water tank can be manufactured upon request. The installed water tanks are additional accessories.
15-As an accessory, 16 cm or 20 cm fan can be mounted.
16- As an accessory, water heaters can be mounted in the shower cabins.
17- Upon request special additional urinal and lavatory with footrest can be installed.
18- Electrical installation: The hidden electrical installation is made in plaster depth. The cables are HES brand, for the fuses Siemens automates are used. For the sockets cables of 2 X 2.5, lighting 2 X 1.5 are used. The keys and sockets are VIKO brand. In each room there is one key, one socket and one telephone socket. Split air conditioning installation will be made at the container.
19. Paint: Double layer industrial coating and double layer industrial paint is being applied on the external surfaces of the container.
20-Dimensions: The 1 type containers are in the dimension of 3.00 X 7.00 X 2.6 and the 2 nd type containers are 2.40 x 6.00 X 2.6.
21-Lifting system: By connection of the steel cables with equal distance to the hidden eye bolts mounted on corners to the locks the loading work is being made. As the WC, shower containers are manufactured from gelatinized sheet metal without insulation they may be manufactured with insulation. The containers can be manufactured two or more layered upon request.
Our products are TSEK and ISO-2000 quality certificated.
The reinforced concrete of the floor, heating and cooling installations and external building lines, accommodation between cities, lodging, transportation and transportation insurance belongs to customer.
The right of modifying of the technical specifications belongs to CLIMA prefabricated.
WC Shower containers
Mobile WC Shower containers (toilet bath) are assembled series and rapidly to meet your demands at your work site organizations and earthquake regions.
If necessary they may be mobile an upon request clean water tank can be installed on top of the container that is applied with transportable trailer. At the bottom of toilet and shower containers if there is not any water connection, waste water tank can be made to be buried under ground. After the waste water tank is filled, you may easily draw the waste with the sewage truck. WC shower toilets containers can be manufactured with closeted WC, Turkish style toilet and toilet with urinal lavatory shower system (bathroom) WC shower mobile container units upon request.
